特性及应用：
CSK 系列楔块式超越离合器又称单向旋转球轴承，外形尺寸与 62
系列深沟球轴承相同（CSK40 除外）。
它是深沟球轴承和楔块式离合器的组合，其内部已填筑润滑脂。密封可以防止 0.3mm 以上灰尘进
入内部。转矩的传递为过盈配合方式，以 N6 公差将外环与刚性足够的机架压合，将内环与工作轴外
径压合。安装时要注意，不可敲打内环压迫外环进入机架，及不可敲打外环压迫内环挤入轴外径的
方式安装，传递扭矩小（7.4-260N.m），极限转速高。广泛应用于印刷机械、包装机械、食品机械、
电动滚筒、减速机及测试设备等传递中。
Characteristics and application:

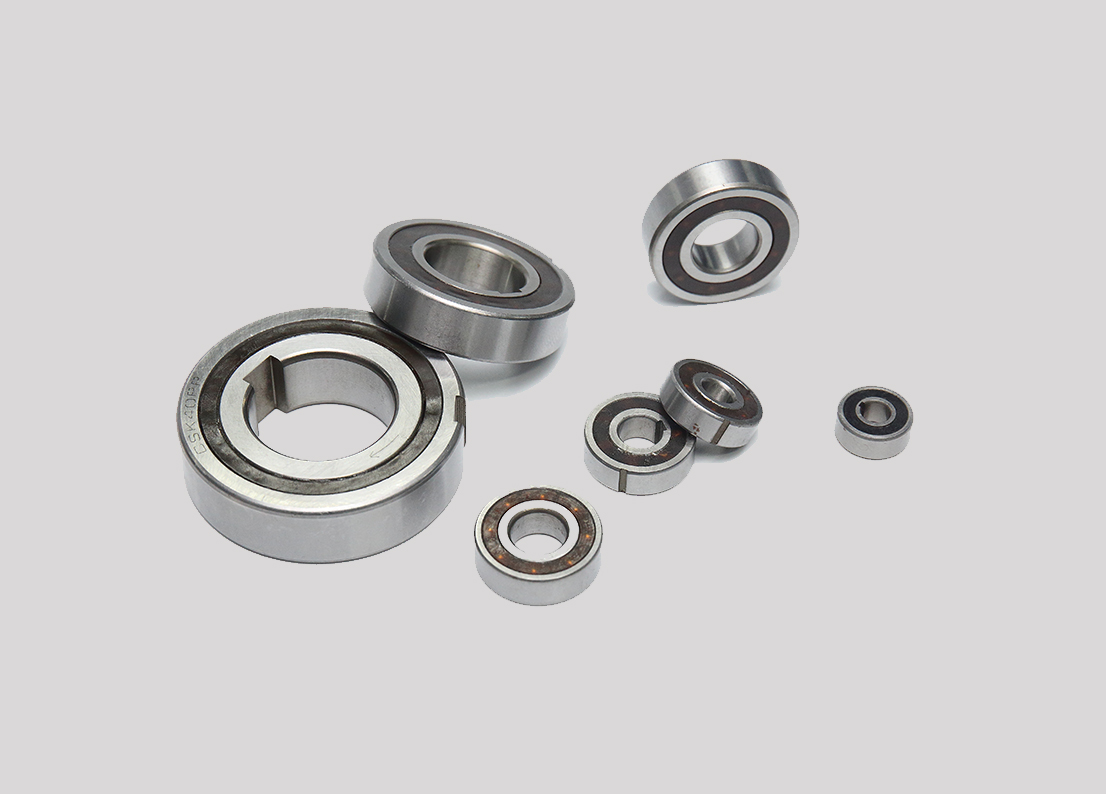

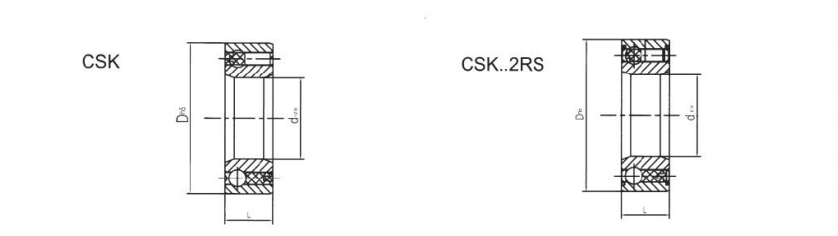

CSK series wedge type overrunning clutch, also known as one-way rotating ball bearing,
shape size is the same as the 62 series deep groove ball bearings (except CSK40).It is deep
groove ball bearing and the combination of wedge type clutch, its internal filling
grease.Sealed to prevent more than 0.3 mm dust into the interior.Torque transfer for full

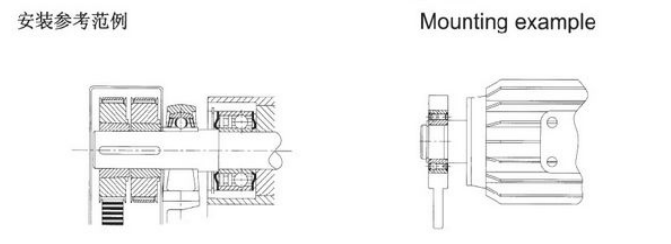

cooperate way to N6 tolerance to the outer ring and rigid enough frame pressing, pressing
will work the inner ring and shaft diameter.When installation should pay attention to, do
not knock the inner ring oppression outer ring into the frame, and way of tapping into outer

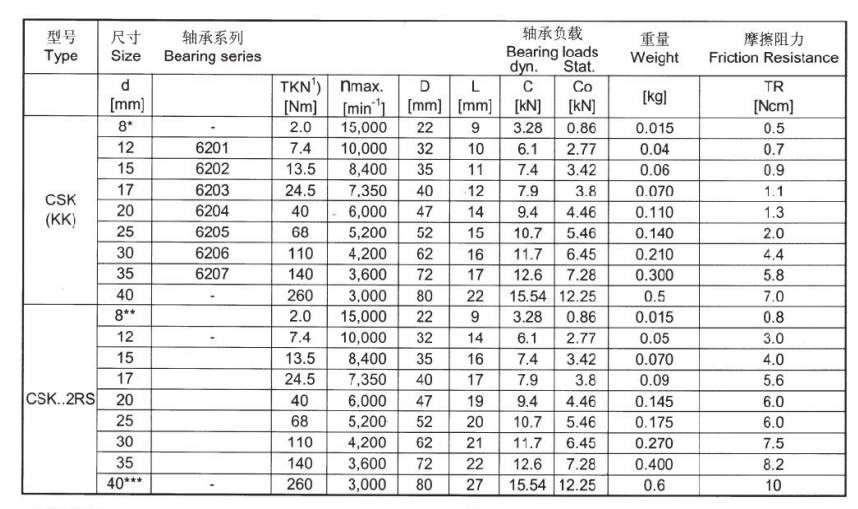

ring compression internal ring shaft diameter installation, torque is small (7.4-260 n.
m), high limit speed.Widely used in printing machinery, packaging machinery, food machinery,
electric drum, reducer, and transfer of test equipment, etc.
