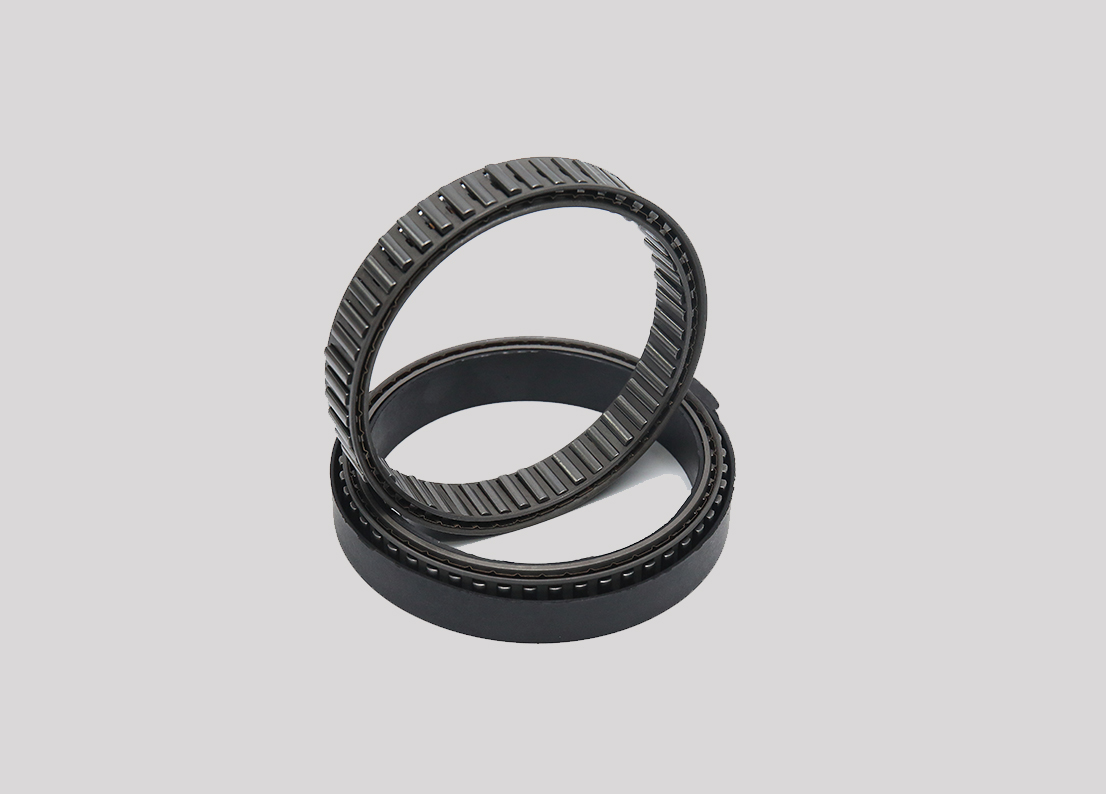

特性及应用： DC 型式为楔块保持器单向离合器但不含内环与外环。 ·此型号必须配合客户自行设计的 内环及外环，轴承支撑轴向及径向的负载，与润滑油脂及油封。 ·不规则作动子接触面之空间 公差必需在范围内，外环与内环之接触面的宽度不可小于尺寸“e”，接触面不可有任何沟槽以* 功能正常。 ·原厂可提供标准型式的内环与外环。 ·若自行制造经硬化处理过的钢制轴 心及工件机壁直接套入。研磨加工处理过的接触面硬度为HRC 60~62硬化深度须大于0.6mm。 ·接 触面之内部硬度为 HRC 35~45，接触面之表面光滑度必需小于 22 CLA，接触面可接受之*大歪斜度 为 25mm 宽度为 0.007 之歪斜度。

 Characteristics and application: DC type for wedge retainer one-way clutch but without the inner ring and outer ring.Must cooperate with customer design, this type of inner ring and outer ring, axial and radial load bearing support, and lubricating grease and oil seal.Exposure to space, irregular actuation son tolerances must be within the range, not less than the width of the contact surface of outer ring and inner ring size "e", the contact surface shall not have any groove to ensure that the function is normal.Factory can provide the standard type of inner ring and outer ring.If, to manufacture its own treated by hardening steel axis and the machine set directly into the wall.Grinding process of contact surface hardness of HRC 60 ~ 62 hardening depth must be greater than 0.6 mm., contact area of the internal for 35 ~ 45 HRC hardness, surface smoothness of the contact surface must less than 22 CLA, contact area of acceptable biggest skew is 25 mm width is 0.007 the skew.
