凸轮离合器MG(Mi)系列

发布时间:2021-07-07

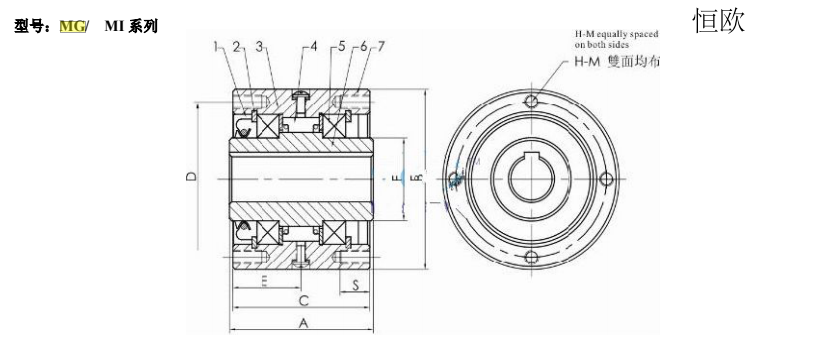

MG系列

MGMI 系列凸轮离合器两端配有防尘轴承, 部已经注入特殊的润滑脂,使用时不需要润滑。
与皮带轮、齿轮或链轮配合时,将离合器插入皮带轮、齿轮或链轮的 孔(具有 JIS 标准 f6 级公差)
并将螺栓(高抗拉强度)旋入离合器端面的牙孔 来紧固。
外部载荷要使用其他的装置来支撑,不能直接作用在凸轮离合器上。
离合器与轴的联结仅能使用平键,请勿使用锥形键。
当 离合器安装到轴上时,应 推力作用於离合器的内圈,请勿作用於外圈。
此系列凸轮离合器的工作环境温度:-5℃至 40℃
MGMI series CAM with dustproof bearing on both ends of the clutch, the internal has special
grease injection, when using do not need lubrication.Cooperate with pulley, gear or sprocket,
insert the clutch pulley, gear or sprocket holes (with the JIS standard grade f6 tolerance)
and bolt (high tensile strength) end of the screwing in clutch tooth hole to tighten.To
use other devices to support external load, and no direct effect on the CAM clutch.The clutch
and the shaft coupling can only use flat key, do not use taper key.When the clutch is installed
on the shaft, the thrust on the clutch should be inner ring, please do not apply to outer
ring.This series of CAM clutch working environment temperature: - 5 ℃ and 40 ℃
